How to read and understand your HVAC nameplate
Most homeowners walk past the silver or white sticker on the side of their outdoor condenser every single day without a second thought. They treat it like a mattress tag, something that exists only for the manufacturer or a bored inspector. This is a massive mistake. That nameplate is the Rosetta Stone of your HVAC system. It contains every critical piece of data required to maintain, repair, or replace your unit without getting scammed or buying the wrong parts. If you do not know how to read this plate, you are essentially flying blind when a technician gives you a quote or when you try to troubleshoot a simple electrical issue yourself. You need to treat this piece of metal as the ultimate authority on your home comfort. In our experience, the right approach makes all the difference.

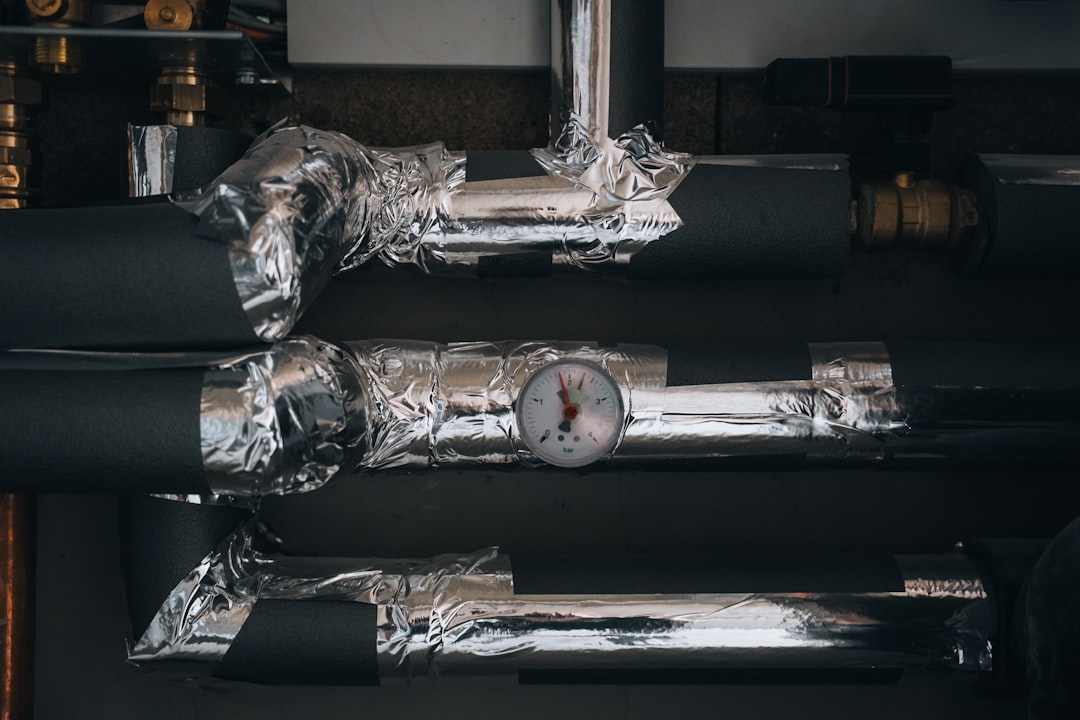

Photo by Fabian Kleiser on Unsplash
SAFETY WARNING: Working on HVAC systems involves high-voltage electricity and high-pressure refrigerants. If your troubleshooting involves opening electrical panels or checking gas lines, you must ensure your home has functioning Carbon Monoxide (CO) detectors. If you are uncomfortable using a multimeter or if you suspect a refrigerant leak, stop immediately and call a licensed professional. Mistakes in these areas can lead to fire, explosion, or fatal electrical shock.
The Model Number Rosetta Stone
The model number is the most vital string of characters on your HVAC nameplate. It is not just a random sequence of numbers; it is a coded language that tells you the unit’s capacity, its efficiency series, and its configuration. Most manufacturers embed the “tonnage” of the unit directly into this number. In the HVAC world, cooling capacity is measured in BTUs (British Thermal Units), and 12,000 BTUs equals one ton of cooling. When you look at your model number, look for a two-digit number that is a multiple of six or twelve. For example, if you see “36” in the middle of a long string, your unit is likely a 3-ton system (36,000 divided by 12,000).
Understanding this helps you verify if your system was sized correctly for your home in the first place. You can cross-reference this data with our guide on what size HVAC system does my house need to see if your current equipment is actually up to the task. Beyond tonnage, the model number often indicates the SEER (Seasonal Energy Efficiency Ratio) rating. A model number starting with “14AC” might indicate a 14-SEER air conditioner. This is critical information when you are trying to calculate potential energy savings or when you are searching for compatible replacement parts like fan motors or capacitors.
Never rely on a technician’s verbal word for what model you have. Technicians make mistakes, and sometimes they misidentify units that have been rebranded by parent companies. Carrier, Bryant, and Payne often share internal parts, but their model number structures differ slightly. Always take a clear photo of the model number and save it to a cloud folder. If the nameplate is starting to fade, use a permanent marker to write the model and serial numbers on the inside of the electrical disconnect box. This ensures that even if the outdoor sticker peels off from UV exposure, you still have the “DNA” of your system recorded. For those who want to go deeper into the technical specifications of their hardware, I highly recommend keeping a copy of Modern Refrigeration and Air Conditioning on your shelf. It is the gold standard for understanding how these components interact.
Electrical Specifications: MCA and MOP
The electrical section of the nameplate is where most DIYers get into trouble. There are two acronyms you must understand: MCA (Minimum Circuit Ampacity) and MOP (Maximum Overcurrent Protection). The MCA tells you the minimum wire size required to safely power the unit. If your nameplate lists an MCA of 24.5 amps, you cannot use a wire rated for only 20 amps. You would need 10-gauge wire, which is typically rated for 30 amps. Using undersized wire is a leading cause of electrical fires and premature compressor failure due to voltage drop.
The MOP is even more critical for your breaker panel. This value tells you the largest fuse or circuit breaker allowed to protect the equipment. If the nameplate says “Max Fuse or HACR Circuit Breaker: 40 Amps,” and you have a 50-amp breaker installed, your system is not properly protected. In the event of a motor short or a locked rotor, a 50-amp breaker might not trip fast enough to prevent the internal components from melting or catching fire. The “HACR” designation stands for Heating, Air Conditioning, and Refrigeration, meaning the breaker is designed to handle the high “inrush” current that happens when a compressor starts up without tripping prematurely.
To verify these values in real-time, you should own a reliable tool like the Fluke 101 Basic Digital Multimeter. While you should not be poking around inside a live cabinet without training, a multimeter allows you to check if the voltage being supplied to your unit matches the “Volts” rating on the nameplate. Most residential units are rated for 208/230V. If your utility company is delivering 190V or 250V, your system will run hot and die young. The nameplate provides the “allowable voltage range,” usually plus or minus 10 percent. If you are outside that range, you have a utility issue that needs immediate attention before it fries your expensive compressor.
Refrigerant Data and Factory Charge
The refrigerant section of the nameplate tells you exactly what “juice” your system runs on and how much was put in at the factory. This is not a suggestion. If your system is designed for R-410A, you can never, under any circumstances, add R-22 or any of the newer R-454B replacements without a full system conversion. Mixing refrigerants will chemically react with the oil in the compressor, creating an acid that will eat the motor windings from the inside out. For a deeper dive into why this matters, read our post on refrigerant types explained.
The nameplate will also list the “Factory Charge.” This is the amount of refrigerant, usually in pounds and ounces, that the manufacturer put into the outdoor unit at the factory. This charge is typically calculated for a standard 15-foot line set (the copper pipes connecting the indoor and outdoor units). If your indoor unit is 50 feet away, a technician must add more refrigerant based on that extra distance. Knowing the factory charge allows you to keep the technician honest. If the nameplate says the factory charge is 5 lbs 8 oz, and the tech claims they added 10 lbs of “extra” refrigerant for a standard installation, you are likely being overcharged or they are masking a massive leak.
If you are serious about monitoring your system’s health, a YELLOW JACKET Refrigerant Gauge is the tool the pros use to check pressures. However, simply seeing the pressure is not enough; you must compare those pressures to the “Design Pressures” listed on the nameplate. You will see a “High Side” and “Low Side” design pressure. These are the maximum pressures the internal components are tested to withstand. If your system is operating near these limits, it is likely filthy, overcharged, or suffering from a major airflow restriction. The nameplate gives you the boundaries of safety; stay within them.
Decoding the Serial Number for Age
While the model number tells you what the unit is, the serial number tells you when it was born. This is vital for determining if a unit is still under warranty or if it has reached the end of its statistical life expectancy. Most HVAC systems last 12 to 15 years. If your serial number indicates the unit is 14 years old, you should be budgeting for a replacement rather than sinking 1,500 dollars into a new compressor.
Every manufacturer uses a different code for their serial numbers, but most follow a “Week/Year” or “Month/Year” format. For example, a Goodman serial number starting with “1605” usually means it was manufactured in May of 2016. A Carrier serial number might start with “2214,” indicating the 22nd week of 2014. Some older brands use a letter to represent the month (A for January, B for February, and so on). If you cannot decipher the code, you can use the AHRI Directory to look up the equipment’s certification and often find production date ranges.
Knowing the age also helps you understand the efficiency standards of the time. A unit built in 2005 might only be a 10-SEER unit, whereas a unit built in 2024 must meet much higher federal minimums. This age data is also your best leverage when negotiating a home purchase or sale. If a seller claims the HVAC is “new,” but the nameplate serial number shows a manufacture date from eight years ago, you have empirical proof that the system is mid-life, not new. Always verify the serial number against any maintenance records or “new installation” claims provided by contractors.
Tonnage Decoding Framework
To help you quickly identify the size of your unit, use the following table. Match the two-digit number found in your model number (usually following the series prefix) to the tonnage and BTU capacity.
| Model Number Digits | Cooling Capacity (BTUs) | Tonnage |
|---|---|---|
| 18 | 18,000 | 1.5 Ton |
| 24 | 24,000 | 2.0 Ton |
| 30 | 30,000 | 2.5 Ton |
| 36 | 36,000 | 3.0 Ton |
| 42 | 42,000 | 3.5 Ton |
| 48 | 48,000 | 4.0 Ton |
| 60 | 60,000 | 5.0 Ton |
This framework is the quickest way to verify your system’s output. If you live in a 2,000-square-foot home and your nameplate shows an “18,” your system is severely undersized, which explains why it never reaches the setpoint on a 95-degree day. Conversely, if you see a “60” for a small 1,000-square-foot condo, your system is oversized, which leads to short-cycling and high humidity. The nameplate does not lie, even if the person who installed the system did.
Common Mistakes When Reading Nameplates
The most common mistake homeowners make is misidentifying the unit by reading the wrong nameplate. Most homes have at least two: one on the outdoor condenser and one on the indoor evaporator coil or furnace. If you are looking for the cooling capacity, you must look at the outdoor unit. If you are looking for the furnace’s heating output or the blower motor’s electrical requirements, you must look at the indoor unit. Mixing these up will lead to you ordering a 3-ton blower motor for a 5-ton system, which will result in a frozen coil and a very expensive service call.
Another frequent error is ignoring the “Phase” rating. Most residential homes are Single Phase (1 PH). However, if you accidentally buy a piece of equipment rated for Three Phase (3 PH) because you found a “great deal” on a commercial surplus site, you will not be able to run it in a standard home without an expensive phase converter. Always check the “PH” or “Phase” section of the nameplate before buying any replacement parts, especially motors.
Finally, do not assume that the information on the nameplate is still 100 percent accurate if the unit has been modified. Sometimes, technicians will replace a motor with a “universal” alternative that has different electrical requirements than the original nameplate specifies. If you see hand-written notes inside the electrical panel or stickers from a motor manufacturer that differ from the main nameplate, pay attention to them. However, for the core components like the compressor and the refrigerant type, the factory nameplate remains the final word. If you find yourself confused by conflicting labels, it is time to call a pro to audit the system’s current configuration.
FAQ
What should I do if my HVAC nameplate is too faded to read?
If the nameplate is faded due to sun exposure, do not try to scrub it with cleaning chemicals, as this will often erase the remaining ink. Instead, try the “pencil rubbing” technique. Place a piece of thin paper over the plate and gently rub a lead pencil over it; often, the indentations from the original stamping will show up on the paper. If that fails, look for a smaller secondary sticker inside the electrical service panel. Most manufacturers place a duplicate “birth certificate” inside the control box to protect it from the elements. As a last resort, you can take the serial number of the compressor itself (located on the compressor body inside the unit) and call the manufacturer to find the original equipment specs.
Why does my nameplate list two different voltage ratings?
You will often see “208/230V” on a nameplate. This is because electrical standards vary slightly depending on the local utility grid and whether the building is residential or commercial. A residential home typically provides 230V or 240V, while a commercial building using three-phase power might provide 208V. The equipment is designed to operate safely on either voltage. However, the performance metrics, such as the Amps (RLA) and BTUs, might change slightly depending on which voltage is supplied. The nameplate usually provides the data for both scenarios, allowing a technician to calibrate the system correctly for your specific power supply.
Can I use the nameplate to find my air filter size?
Generally, no. The nameplate on the outdoor condenser or the indoor furnace rarely lists the filter size. This is because the filter is often part of the ductwork or a separate filter rack installed by the contractor, not the equipment manufacturer. However, the indoor unit nameplate will list the “Maximum Static Pressure.” This is a critical number because if you use a filter that is too restrictive (like a high-MERV pleated filter), you can exceed the static pressure limit listed on the nameplate. This causes the blower motor to work harder, run hotter, and eventually fail. Use the nameplate to find the model number, then look up the manufacturer’s spec sheet online to find the recommended airflow (CFM) for your specific unit.
Conclusion
Understanding your HVAC nameplate is the difference between being an informed homeowner and a victim of circumstance. By decoding the model and serial numbers, you gain the ability to verify your system’s age, capacity, and efficiency. By mastering the electrical and refrigerant specs, you ensure that any repairs or modifications are done safely and correctly. Do not let that silver sticker remain a mystery. Take a photo of it today, decode the values using the frameworks provided, and keep that information in your home maintenance log. Your wallet and your home’s comfort depend on it.
If you found this guide helpful, bookmark this page for the next time you need to troubleshoot your system or talk to a contractor.
