Ductless mini-split installation: what homeowners should know
Ductless mini-split systems are the most effective way to solve comfort issues in specific rooms without the massive expense of ductwork. You are likely considering one because a traditional central air system cannot keep up with a finished basement, a garage workshop, or a sunroom that turns into an oven every July. While the promise of high efficiency and whisper-quiet operation is real, the installation process is where most homeowners stumble. You cannot simply hang a box on the wall and expect it to work for a decade. The longevity of these systems is almost entirely dependent on the quality of the installation, specifically how you handle the refrigerant lines and the electrical connections. If you cut corners during the setup, you will end up with a very expensive wall decoration that leaks refrigerant and dies within three years. You need to approach this project with a precision mindset, focusing on the technical details that most DIY videos gloss over. In our experience, the right approach makes all the difference.

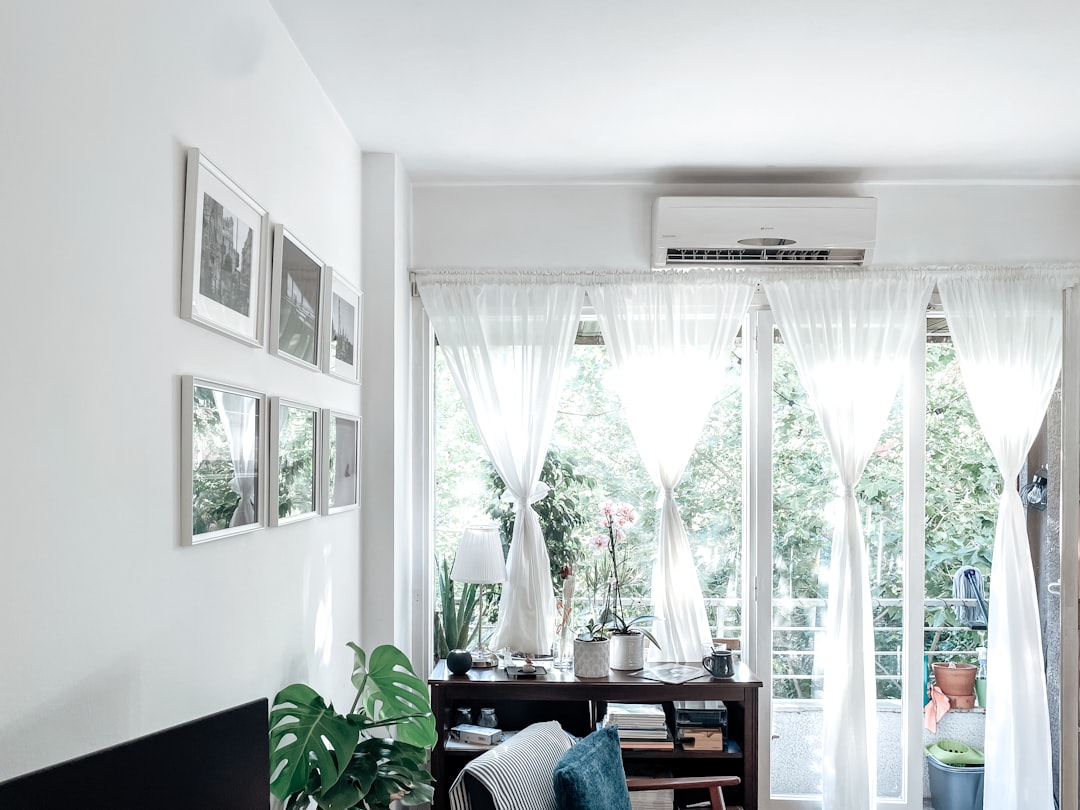

Photo by Daniel Galíndez M. on Unsplash
Proper Sizing and the Myth of Excess Capacity
The biggest mistake you can make occurs before you even buy the equipment. Many homeowners assume that if a 12,000 BTU unit is good, an 18,000 BTU unit must be better. This logic is flawed and will lead to a miserable living environment. Mini-splits are designed to modulate their speed, but they still have a minimum operating threshold. If you install a unit that is too large for the space, it will “short cycle,” meaning it turns on, blasts the room with cold air, and shuts off before it has a chance to remove any humidity. You will be left with a room that is cold but clammy.
To avoid this, you must perform a basic load calculation. Factor in the square footage, the number of windows, the quality of your insulation, and the height of your ceilings. A sunroom with floor-to-ceiling glass requires significantly more cooling power than a windowless basement of the same size. If you are unsure about the specific requirements of your space, refer to our guide on What Size Hvac System Does My House Need to get a better handle on the math. Getting the sizing right ensures the unit runs for long cycles, which is the only way to achieve the high SEER ratings promised on the box.
Beyond the BTU rating, you must consider the voltage. Most smaller units (9,000 to 12,000 BTU) are available in 115V configurations, but larger units and multi-zone systems almost always require 230V. You need to verify your electrical panel has the physical space for a double-pole breaker and the capacity to handle the additional load. Do not assume you can just tap into an existing outlet circuit. These units require a dedicated circuit to prevent nuisance tripping and potential fire hazards.
SAFETY WARNING: This project involves working with high-voltage electricity and pressurized refrigerants. If you are not comfortable wiring a dedicated 230V circuit from your main panel to an outdoor disconnect, call a licensed electrician. Additionally, while many homeowners mount the units themselves, the final refrigerant release and commissioning should ideally be handled by a Section 608 certified technician to ensure no leaks exist. If your home uses gas appliances, ensure you have working Carbon Monoxide (CO) detectors on every floor, as any HVAC modification can theoretically impact home pressure and venting.
Mounting the Indoor Unit for Airflow and Drainage
The placement of the indoor air handler is about more than just aesthetics. You need to mount the unit on an exterior wall whenever possible. This simplifies the drainage process significantly. Every mini-split generates condensation as it removes moisture from the air. This water must go somewhere. If you mount the unit on an interior wall, you will likely need a condensate pump. These pumps are notorious for failing, and when they do, they leak water directly down your finished wall. By mounting on an exterior wall, you can use a simple gravity drain, which is much more reliable.
When you find your mounting spot, use a stud finder to ensure the mounting plate is secured to at least two studs. The air handler is not exceptionally heavy, but it vibrates slightly during operation. If it is only secured to drywall with anchors, it will eventually pull away or create annoying rattling sounds. You also need to maintain at least 6 inches of clearance from the ceiling. The unit pulls air in from the top, so if you mount it too high, you will starve the fan of air, reducing efficiency and potentially freezing the evaporator coil.
The most critical part of mounting the indoor unit is the 3 inch hole you must drill through your wall. This hole must be drilled at a slight downward angle toward the outside. Even a perfectly level hole can cause drainage issues. You want gravity to work for you. If the hole is angled upward or even perfectly flat, water can back up into the indoor unit’s drain pan, eventually overflowing onto your floor. Once the hole is drilled, use a wall sleeve to protect the refrigerant lines and wires from the raw edges of the siding and sheathing.
The Outdoor Unit: Brackets versus Ground Pads
You have two primary options for the outdoor condenser: a ground pad or a wall bracket. In my experience, a wall bracket like the DuctlessAire Wall Mounting Bracket is the superior choice for most residential installations. Mounting the unit off the ground keeps it away from dirt, lawnmower debris, and localized flooding. If you live in an area that gets snow, a wall bracket is mandatory. You need to keep the unit above the anticipated snow line so it can continue to pull air for the heat pump function during the winter.
If you choose a ground pad, do not just throw a plastic pad on the grass. You need to dig out the area, fill it with crushed stone, and ensure it is perfectly level. A condenser that is out of level will experience uneven wear on the compressor bearings, leading to premature failure. Furthermore, ground-mounted units are more susceptible to “heaving” in cold climates, where the freezing and thawing of the ground shifts the unit and puts stress on the copper refrigerant lines.
Regardless of which mounting method you use, pay close attention to clearances. The manufacturer will specify how much room the unit needs from the wall and from any surrounding shrubbery. Most units need at least 12 inches of rear clearance and 24 to 36 inches of front clearance. If you tuck the unit into a tight corner or hide it behind dense bushes, it will recycle its own hot exhaust air. This causes the head pressure to skyrocket, forcing the compressor to work harder and significantly shortening its lifespan.
Managing the Line Set and Aesthetics
The “line set” consists of two copper pipes, a communication wire, and a drain hose. These are the veins and nerves of your system. When you pull these through the wall, you must be extremely careful not to kink the copper. Once a copper line is kinked, it cannot be easily “un-kinked.” It creates a restriction in the refrigerant flow that will cause the system to underperform or fail. Use a dedicated tube bender for tight turns, and always leave a little extra length at the outdoor unit to allow for future adjustments.
The exterior of your home will look like an industrial site if you leave the line sets exposed. Raw insulation on copper lines will degrade under UV light within two years, turning into a crumbly mess that offers zero thermal protection. You should always use a professional covering system like the Diversitech SpeediChannel Line Set Cover. These covers hide the lines, protect them from the elements, and give the installation a finished, professional look. They are easy to install and can be painted to match your home’s siding.
When connecting the lines to the units, you will likely be using flare fittings. This is the most common point of failure for DIY installations. Most “factory flares” that come on pre-charged line sets are poorly made. I strongly recommend cutting off the factory flares and making your own using a high-quality eccentric flaring tool. A bad flare will leak refrigerant slowly over several months. By the time you realize there is a problem, the system will be empty, and you will be facing a costly repair bill. Always use a tiny amount of refrigeration oil on the flare face to help it seal, but never use thread sealant like Teflon tape or pipe dope.
The Critical Commissioning Phase: Vacuuming the Lines
Once the mechanical and electrical connections are made, you cannot simply open the valves and start the unit. There is air and moisture inside those copper lines. If you release the refrigerant into a system containing air, the moisture will mix with the refrigerant oil to create an acid that eats the motor windings from the inside out. You must perform a deep vacuum to remove all non-condensables.
This requires a dedicated vacuum pump, such as the ZENY Vacuum Pump, and a micron gauge. You cannot rely on the gauges on a standard manifold set to tell you if the system is clean. You need to pull the system down to at least 500 microns and ensure it holds that vacuum for at least 15 to 30 minutes. If the micron count rises rapidly once you turn off the pump, you have a leak in your flare fittings. If it rises slowly and then plateaus, you still have moisture in the lines and need to continue vacuuming.
For more information on why this step is so vital, you can read the Department of Energy’s guide on ductless systems which highlights the importance of professional installation standards. Skipping the vacuum process is the fastest way to void your warranty. Most manufacturers require a commissioning report that includes the final micron reading to honor any part replacements. If you do not own a vacuum pump and micron gauge, this is the specific point where you should hire a pro to finish the job.
Installation Decision Framework
| Feature | Ground Pad Installation | Wall Bracket Installation |
|---|---|---|
| Best For | Heavy multi-zone units, stable soil | Single-zone units, snowy climates |
| Vibration | Minimal transfer to house | Potential for slight hum inside |
| Maintenance | Easy access for cleaning | Requires ladder if mounted high |
| Protection | Vulnerable to lawnmowers/pets | Protected from ground debris |
| Cost | Lower (materials only) | Moderate (bracket cost) |
Common Mistakes and Troubleshooting
The most frequent issue I see with homeowner-installed mini-splits is the dreaded “E1” or communication error. This is almost always caused by using the wrong wire or poor terminations. You cannot use standard Romex for the connection between the indoor and outdoor units. You must use shielded 14/4 tray cable (often called mini-split wire). This wire carries both the power and the data signal. If the connections are loose or if you used wire that is not rated for the signal, the system will fail to communicate.
Frequently Asked Questions
Do I really need to pull a vacuum on the lines? Yes. Vacuuming removes air and moisture from the copper lines. If left inside, moisture reacts with the refrigerant oil to form acid, which will eventually destroy the compressor and void your warranty.
Can I install a mini-split on an interior wall? It is possible, but you will need a condensate pump to move water up and out. These pumps are prone to failure and noise. Mounting on an exterior wall is preferred because it allows for a more reliable gravity-fed drain.
What size mini-split do I need for a single room? While a general rule is 20 BTUs per square foot, you must also account for ceiling height, insulation quality, and the number of windows. An oversized unit will short-cycle, leading to high humidity and poor comfort.
Does a mini-split require a dedicated circuit? Yes. Mini-splits must be on a dedicated circuit to prevent overloading existing household circuits. Most units require either a 115V or 230V dedicated line depending on their BTU capacity.
