An HVAC capacitor that’s failing will kill your system’s ability to start or run efficiently - often leaving you without cooling when you need it most. The frustration is real: you call a technician, pay $200–$400 for a service visit, and they swap out a $15–$30 component in five minutes. If your system won’t start, hums without turning on, or shuts down unexpectedly, a bad capacitor is often the culprit.

The good news is that capacitor replacement is one of the few HVAC repairs you can do yourself, provided you understand the electrical hazards and follow the safety steps exactly. A failed capacitor won’t cause permanent damage to your compressor or motor if caught reasonably quickly - but a careless approach to the replacement can injure you. This guide walks you through the process with safety as the foundation, not an afterthought.

By the end, you’ll know how to diagnose a capacitor problem, discharge it safely, identify the correct replacement, and install it without risk. You’ll also know when the job crosses into “call a professional” territory, because some HVAC problems look like capacitor failure but aren’t.

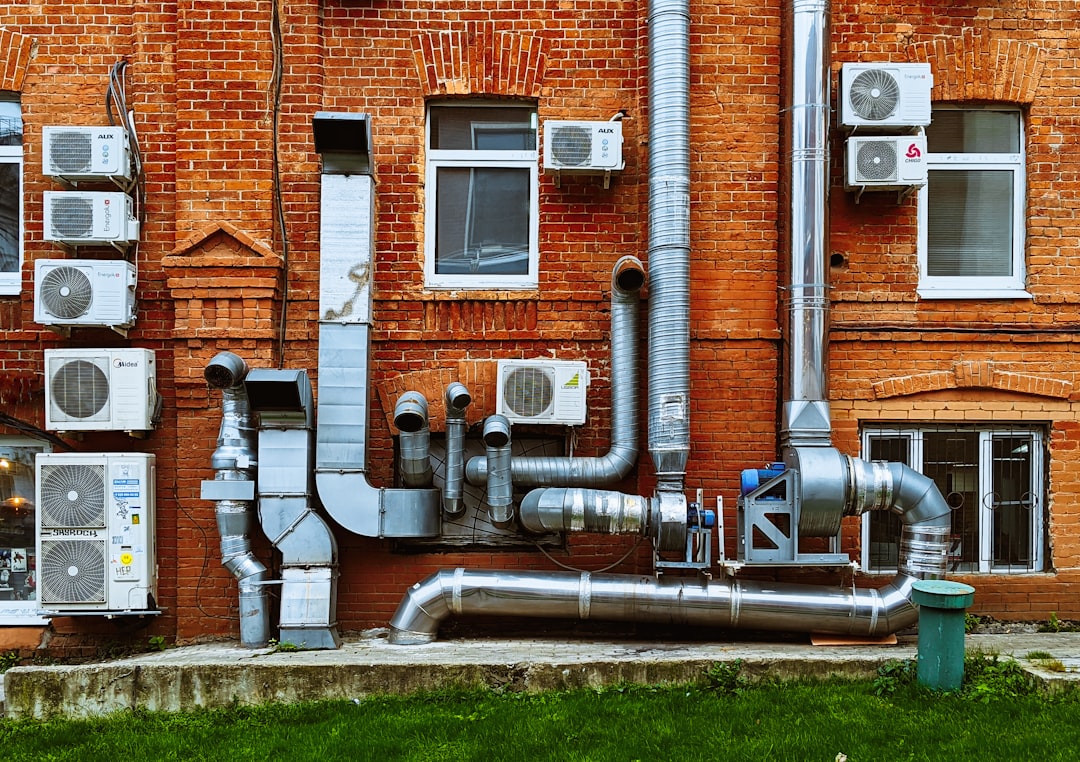

How to replace an HVAC capacitor safely without calling a technician hero image

Photo by Vadim Babenko on Unsplash

What Is an HVAC Capacitor and Why Replacement Becomes Necessary

A capacitor in your HVAC system stores electrical charge and releases it to help start the compressor and fan motors. Think of it as an electrical spring that gives your motors the jolt they need to overcome inertia and begin spinning. Without a functioning capacitor, your compressor won’t start - even though power is reaching the unit.

HVAC systems typically use two types of capacitors working together: the run capacitor (which stays energized while the system operates) and the start capacitor (which engages only at startup). Some systems combine both functions in a single dual-capacitor, which is common in most residential units. You’ll find the capacitor mounted near the outdoor condenser unit or inside the indoor air handler.

Capacitors fail for several reasons. Age is the primary culprit: most last 10–20 years before the internal dielectric breaks down. Heat accelerates this process - outdoor units in hot climates wear out faster. According to ASHRAE technical guidelines on HVAC system components, repeated power surges, voltage spikes from lightning, or chronic low voltage can degrade a capacitor prematurely. Mechanical stress from vibration also contributes. When a capacitor fails, you lose the voltage boost your motor needs, and the system refuses to start or runs inefficiently.

Signs of a failing capacitor include:

  • Your AC or heat pump won’t turn on, even though power reaches the unit
  • The system hums for 5–10 seconds before shutting down
  • The outdoor fan spins weakly or not at all
  • The compressor shuts down after running for only a few minutes
  • Your energy bills spike without a change in usage or temperature setting

Critical Safety Warning: Electrical Hazards You Cannot Ignore

A capacitor holds an electrical charge even after you turn off the system. This is not a theoretical risk. A charged capacitor can deliver a shock of 370–440 volts, which is enough to stop your heart. You must discharge the capacitor before touching it. This is non-negotiable.

According to NFPA 70 (National Electrical Code) safety standards, capacitors must be treated as live electrical components until proven otherwise. Here’s what you absolutely must do before beginning any work:

  1. Turn off the system at the breaker. Switch off the circuit breaker that feeds your HVAC unit - not just the thermostat. Wait at least five minutes to allow residual charge to dissipate.

  2. Do not rely on the power being off. Even with the breaker switched, capacitors can retain charge. Always discharge manually.

  3. Use an insulated screwdriver to short the capacitor terminals. Place the blade of an insulated-handle screwdriver across the two terminals to create a short circuit. Hold it there for 2–3 seconds. You may see a spark - this is normal and confirms the capacitor was charged. Do this twice to be certain.

  4. Never touch the capacitor terminals or leads with bare hands. Use tools and keep your hands clear of the discharge path.

If you are not comfortable working with electricity, if you cannot reliably locate the power shutoff, or if you have any doubt about safety, stop and call a licensed HVAC technician. The cost of a service call is far less than a hospital bill or worse.

Additional safety notes:

  • Do not work on the system alone. Have someone nearby who can call for help if needed.
  • Wear safety glasses to protect against sparks and debris.
  • Do not attempt this repair during wet weather or if the outdoor unit is wet. Wait for dry conditions.
  • If you notice the capacitor is visibly bloated, cracked, or leaking fluid, do not touch it. Call a professional immediately.

Essential Tools and Materials for Capacitor Replacement

You don’t need a full technician’s toolkit, but you do need the right tools to work safely and correctly. Here’s what you’ll need:

Safety and diagnostic tools:

  • Insulated-handle screwdriver (flathead or Phillips, depending on your system)
  • A Klein Tools MM325 Multimeter, Digital Manual-Ranging 600V AC/DC Voltage Tester, or a similar multimeter to verify the power is truly off and to test the capacitor before and after replacement
  • Safety glasses
  • Work gloves (nitrile is fine; leather offers more protection if sparks occur)
  • A flashlight (many outdoor units are mounted in shaded locations)

Replacement capacitors: The most common residential HVAC capacitors are dual-run units rated for 40–5 microfarads (µF or Mfd) at 370 or 440 volts AC. Your existing capacitor will have this information printed on its side. You must match the microfarad rating and voltage exactly. The two best options for HVAC capacitor replacement are:

Either will work, but double-check your existing capacitor’s rating before ordering.

Other materials:

  • A camera or smartphone to photograph the wire connections before you disconnect anything - this becomes your installation guide
  • A small notebook to write down terminal labels if they’re printed on the capacitor

How to Replace Your HVAC Capacitor: Step-by-Step Instructions

Follow these steps in order. Do not skip or combine steps.

Step 1: Power down and wait. Turn off the breaker feeding your HVAC unit at the main electrical panel. Set it firmly to OFF. Wait at least five minutes. Then verify power is off by flipping the thermostat to the “on” position - the system should not respond. If it does, you have the wrong breaker. Find the correct one and repeat.

Step 2: Discharge the capacitor. Locate the capacitor - it’s cylindrical or rectangular, roughly the size of a soup can, mounted near the compressor in the outdoor unit or in the air handler. You’ll see three terminals on top. Use an insulated-handle screwdriver to short the two outer terminals together by placing the blade across both simultaneously. Hold for 2–3 seconds. Repeat this step a second time. If you see a small spark, the capacitor was charged - which means you did the right thing by discharging it.

Step 3: Photograph the wire connections. Before you touch any wires, take a clear photo of the capacitor showing which wires connect to which terminals. Terminal labels are usually marked: “C” (common), “H” (herm/compressor), and “F” (fan). Some capacitors use different labels; your photo will be your reference during reinstallation.

Step 4: Disconnect the wires. Using a small flathead screwdriver, loosen the terminal screws and carefully pull each wire free. Place the wires where they won’t fall or touch bare metal. If the wire ends are corroded or frayed, trim them with a wire stripper and re-bare about ¼ inch of copper. Clean corrosion off the terminal ends with a small wire brush or fine sandpaper.

Step 5: Remove the old capacitor. Most capacitors are held in place by a metal bracket or clip. Loosen the mounting bolt or clip screw, slide the capacitor out, and set it aside. Do not dispose of it in the trash. Capacitors should be recycled at an electronics facility because they contain materials that require proper handling.

Step 6: Install the new capacitor. Check that your replacement capacitor matches the microfarad and voltage ratings of the old one. Slide the new capacitor into the mounting bracket, secure the mounting bolt, and ensure it’s seated firmly. The orientation doesn’t matter for most dual capacitors, but ensure the terminals point upward and are accessible for wire connection.

Step 7: Reconnect the wires. Refer to your photograph. Reconnect each wire to its corresponding terminal, matching the labels. Tighten each terminal screw firmly - loose connections generate heat and cause failures. Gently tug each wire to confirm it won’t pull free. Do not force wires into terminals; if a wire doesn’t fit easily, remove it and ensure you’re inserting it into the correct terminal.

Step 8: Restore power and test. Go to the electrical panel and switch the breaker back to ON. Wait 30 seconds for the system to stabilize. Set your thermostat to cooling or heating (whichever season applies) and set the temperature one degree lower than room temperature. The system should start immediately. Listen for normal compressor and fan sounds. If the system starts and runs smoothly, the replacement was successful.

Testing Your New Capacitor and Verifying Proper Function

After installation, you should verify that the capacitor is doing its job. Use your multimeter to check the voltage across the capacitor terminals while the system is running. For a properly functioning capacitor, you should read approximately 370–440 volts AC (the exact value depends on your system voltage and the capacitor rating - check the label). Set your multimeter to AC voltage mode, not DC, and position the probes carefully without touching the terminals directly.

If the voltage is significantly lower, higher, or reads zero, the replacement hasn’t solved the problem, and you likely have an issue beyond the capacitor, such as a faulty transformer or a failed wire connection.

Run the system for at least 15 minutes and monitor for:

  • Stable compressor and fan operation
  • No humming sounds without the compressor engaging
  • Normal startup without delays or hesitation
  • Steady cooling or heating output
  • No unusual vibrations or noises from the outdoor unit

If everything runs smoothly for 15 minutes, you’re done. Capacitors do not need a “break-in” period - they’re either working or they’re not.

Troubleshooting and Common Capacitor Replacement Mistakes

Mistake 1: Buying the wrong capacitor rating. This is the most common error. You grab a 35 µF capacitor when your system needs 40 µF, thinking “close enough” will work. It won’t. Mismatched microfarad ratings force the motor to work too hard or not hard enough, leading to failure or inefficiency within weeks. Before you order, remove the old capacitor and photograph the label. Match the microfarad rating and voltage exactly. “Universal” capacitors often cover a range (like 35–50 µF), which is acceptable - the label will specify the range, and any rating within that range will work for your system.

Mistake 2: Forgetting to discharge the capacitor. This oversight is dangerous. A charged capacitor will injure you, and that injury can be severe. Always discharge using the screwdriver short method, even if you’re impatient. Always do it twice to be absolutely certain the charge is gone. This step takes 30 seconds and prevents serious injury.

Mistake 3: Leaving wires loose. Loose terminal connections develop resistance, which creates heat and burns out the new capacitor within days or weeks. The replacement dies not from age or defect, but from poor installation. Tighten all terminal screws firmly and tug each wire to confirm it’s secure. If a wire keeps slipping, remove it, twist the strands tighter together, and reinsert it into the terminal screw before tightening.

Mistake 4: Ignoring a bloated or leaking capacitor. If the old capacitor is visibly swollen, has a crack in the side, or shows oily residue on the outside, do not touch it. A bloated capacitor is over-pressurized and may rupture. It’s also a sign that your system has deeper electrical problems - a sustained voltage spike, a faulty transformer, or a malfunction in the control circuitry. Call a licensed technician to diagnose and fix the root cause before replacing the capacitor.

Mistake 5: Not waiting long enough after power-off. You’ve turned off the breaker, but then immediately start work because you’re eager. Wait at least five minutes. Some systems have internal circuitry that bleeds off residual charge slowly, and you want to be certain the capacitor is truly discharged before you begin work.

Mistake 6: Switching capacitor types or installation direction. Most dual-run capacitors work in either orientation, but check your system manual if you have concerns. Do not switch from a dual-capacitor to two separate capacitors, or vice versa, unless you’re following the manufacturer’s guidance. The wiring harness and terminal configuration are designed for a specific capacitor type.

Troubleshooting: System still won’t start after capacitor replacement. If you’ve installed the new capacitor and the system still won’t start, check:

  1. Is the breaker truly on? Flip the switch all the way off, then back on firmly.
  2. Is the thermostat set to a mode (cool or heat) and a temperature below or above the current room temperature? Many systems won’t start if the thermostat is on a hold or if the setpoint isn’t met.
  3. Are all wires connected firmly? Loosen and retighten each terminal connection one at a time, then test again after each wire.
  4. Did you install the capacitor in the correct mounting position? Most systems don’t care, but confirm the terminals point upward for easy access.
  5. Is the new capacitor the correct rating? Double-check the microfarad and voltage numbers against the old capacitor or your system’s nameplate.

If none of these work, your system has a problem beyond the capacitor - likely a faulty transformer, a tripped internal protector, a bad wire connection inside the compressor contactor, or a failing compressor. At this point, call a technician. You’ve done your due diligence.

When to Call a Professional Instead

Don’t attempt DIY capacitor replacement if:

  • Your system is still under warranty. Opening the outdoor unit may void it. Check the warranty paperwork first.
  • You’re uncomfortable working with electricity or climbing ladders to access the outdoor unit safely.
  • The capacitor is visibly bloated, cracked, or leaking. This signals a more serious electrical fault that needs professional diagnosis before you add a new capacitor.
  • You’ve replaced the capacitor correctly and the system still won’t start. A second problem exists, and a technician should find it.
  • The outdoor unit is wet or you’re working in rain. Moisture and electricity don’t mix.
  • Your circuit breaker keeps tripping after replacement. This indicates an electrical short, an overloaded circuit, or a deeper system fault.

If any of these apply, call a licensed HVAC technician. The $200–$300 service call is insurance against injury or further damage to the system.

FAQ

How often should I replace the capacitor in my HVAC system?

Most capacitors last 10–20 years depending on age, heat exposure, voltage stability, and the quality of the component. If your system is 15 years old or older and the capacitor has never been replaced, replacement is a reasonable preventive maintenance step. You don’t need to replace a perfectly functioning capacitor just because it’s old - only replace it if it fails or shows signs of aging, such as a slight bulge on the side, reduced system performance, or the characteristic hum without startup. Preventive replacement can extend the life of your compressor by preventing it from overwork due to a weak capacitor.

Can I use a capacitor with a higher microfarad rating than the original?

No. Using a capacitor with a microfarad rating higher than the original will cause the motor to draw too much current, overheat, and fail prematurely. Similarly, a lower rating will starve the motor of the electrical boost it needs, causing weak startup and inefficient operation. Always match the microfarad and voltage ratings exactly. If you buy a “universal” capacitor, confirm that your exact rating falls within the specified range on the label. Most universal capacitors list a range like “35–50 µF,” meaning any rating in that range will work for your system.

What should I do with the old capacitor?

Do not throw it in the trash. Capacitors contain materials that can leach into the environment, and they pose a shock hazard if handled improperly. Take the old capacitor to an electronics recycling facility, a Goodwill donation center (many accept electronics), or ask your HVAC technician to recycle it for you if you’re not sure where to take it locally. Some retailers that sell capacitors also accept old ones for recycling. Contact your local waste management facility for a list of electronics recyclers in your area if you’re unsure where to start.

Conclusion

Replacing an HVAC capacitor is a straightforward repair that saves you hundreds of dollars and restores your system to normal operation within an hour. The key is respecting the electrical hazard - always discharge the capacitor, verify power is truly off, and match the rating exactly. If the system starts immediately after installation and runs smoothly, you’ve done the job correctly.

Your next action is simple: if your system hums without starting, or won’t start at all, and you’ve ruled out thermostat problems, turn off the breaker and safely discharge the capacitor to confirm it’s holding a charge. If it is, order the correct replacement and follow the steps in this guide. If the capacitor isn’t charged or the system still won’t start after replacement, call a technician - you’ve done your due diligence and the problem is beyond capacitor replacement.
